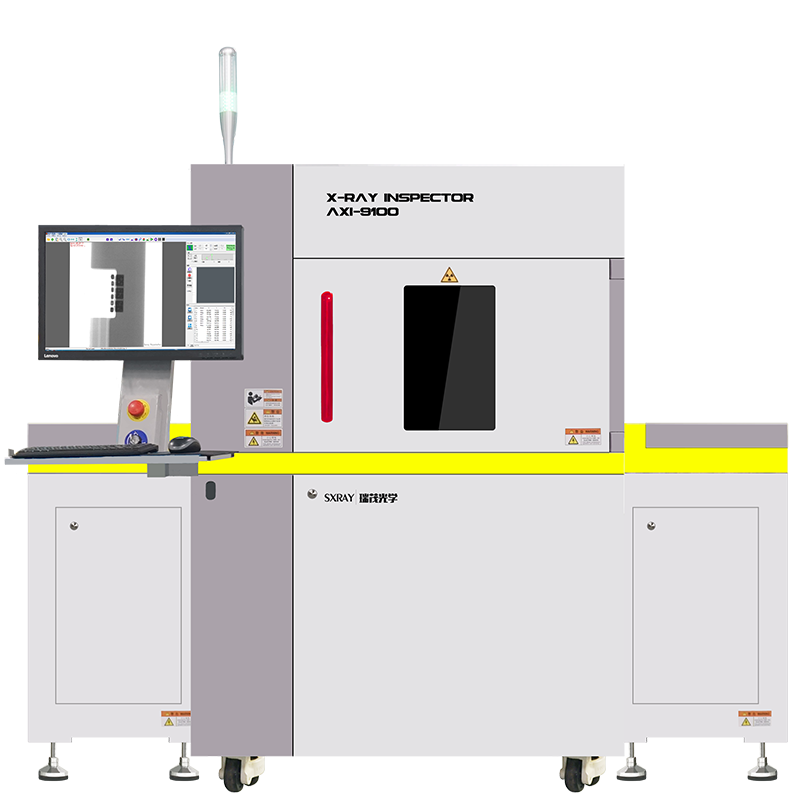

Online X-RAY_AXI-9100
Stage size：640*450mm
Spatial resolution：5um
Optical magnification：100x
Scope of application：Batch testing
Tube voltage：
AXI9100 online X-ray equipment realizes automatic loading and unloading, automatic ON/OFF X-ray tube for batch sample inspection and automatic analysis of NG/OK products.
specification
Product Introduction
| Model： | AXI-9100 |
| X-Ray tube type | Closed |
| Spatial resolutiaon | 5um |
| Light tube voltage | 90KV （Optional 110KV、130KV） |
| Light tube current | 200uA（MAX) |
| Magnification | 100x |
| Digital flat panel detector resolution | 1536*1536 px （Optional 1500*1100 px） |
| Digital flat panel detector density value | 14bit （16348） |
| Image speed | 30 (FPS) |
| Support rotation angle | 360° |
| Stage size | 640*450mm |
| X-Y strokee | 900*600 mm |
| Examination range | 0.02-45 cm2 |
| Machine size | 1200*1475*1750mm (L*W*H) |
| Machine weight | 1400KG |
| operating system | WINDOWS 7/WINDOWS 10 |
| Power supply/power | AC110-220V 50-60HZ 1200W |
| Radiation safety test | <1 uSV/H |
